0077595, (Pack of 5) 1/4-20 X 1/2 inch Titanium Socket Drive Threaded Insert, 3/8-16 Ext, Grade 5 (Ti-6Al-4V)
4.6 (139 items)
Limited Time Sale$25.75 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220329928 | Release Date | 2026/05/03 | List Price | $17.17 | Model Number | 220329928 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
A threaded insert is a fastener component that can be used as an alternative to through bolting items together. A wonderful use for threaded inserts is mounting deck hardware onto boats. Instead of drilling holes all the way through the deck to mount hardware with bolts and nuts, simply drill and tap a hole into the deck matching the external thread of the insert. Coat the threaded hole and the outside of the insert with epoxy. Finally, screw the insert into the threaded hole in the deck with a hex driver, such as an allen wrench. When the epoxy hardens, you will have a Grade 5 (Ti-6AL-4V threaded fastener in the deck that is corrosion free forever and 3-1/2 times stronger than stainless steel. The major benefit of this method is a vessel deck that can never leak. Hex drive Titanium threaded inserts can be used in aluminum, wood and fiberglass for mounting stanchions, bow pulpits, liferaft cradles as well as dodgers and bimini tops. Unlike stainless steel and other less noble metals, titanium threaded inserts are corrosion free. Titanium's resistance to corrosion and its amazing strength-to-weight ratio is the reason it has become the chosen metal for the aerospace and underwater exploration industries. Any place a fastener is used in harsh conditions, such as an oil rig, space shuttle or deep ocean power generation plant, titanium can be found. TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.

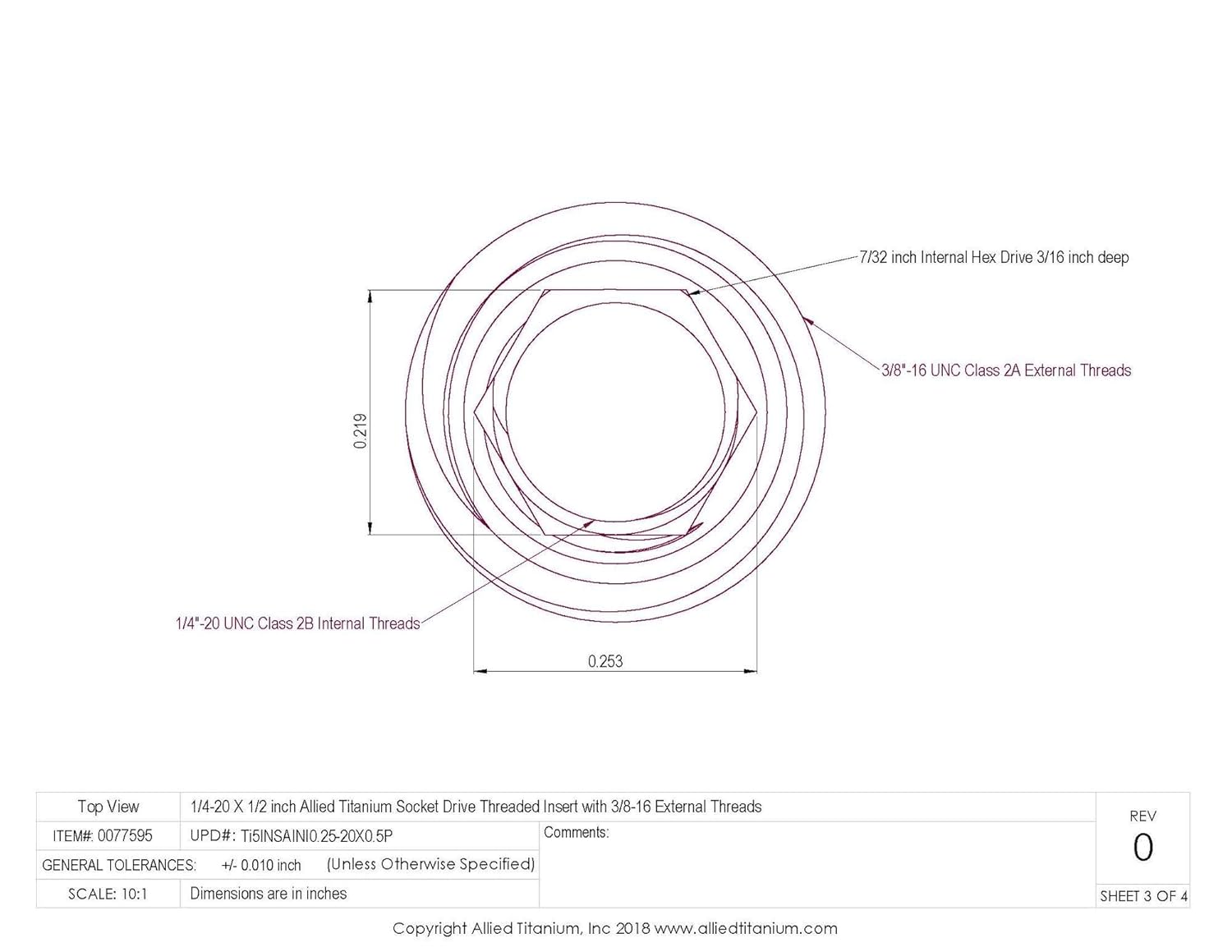

- 1/4-20 X 1/2 inch Allied Titanium Socket Drive Threaded Insert with 3/8-16 External Threads
- TRUE TITANIUM(TM) - Stronger, Lighter and Corrosion Free
- Titanium is good for use in or near saltwater
- General Tolerance: +/- 0.010 inch
- Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
| UPC | 708498482826 |
|---|---|
| Brand | Allied Titanium |
| Model | 1034267001 |
| Size Name | 3/8-16 UNC Class 2A Threads |
| Metal Type | Aluminum, Stainless Steel, Titanium |
| Drive Style | Internal Hex |
| Item Weight | 0.3 Ounces |
| Part Number | 0077595 |
| Thread Size | 1/4"-20 |
| Thread Type | Unified National Coarse |
| Finish Types | Polished,Titanium |
| Grade Rating | Grade 5 |
| Manufacturer | Allied Titanium, Inc. |
| Thread Style | Right Hand |
| Fastener Type | Insert |
| Item Diameter | 0.38 Inches |
| Material Type | Titanium |
| Exterior Finish | Polished Finish |
| Item Dimensions | 0.5 x 0.38 inches |
| Number Of Items | 5 |
| Thread Coverage | Fully Threaded |
